Automatic Transaxle Control System - 1.6L
>>
Components And Components Location
>>
Components Location
Components Location

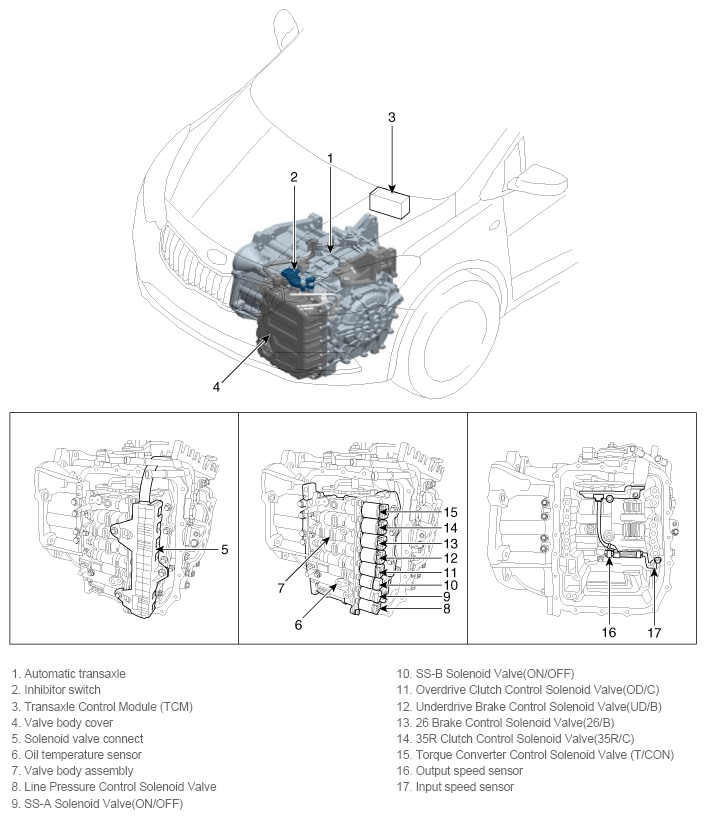

Fig 1: Locate Transaxle Assembly Components
Courtesy of KIA MOTORS AMERICA, INC.

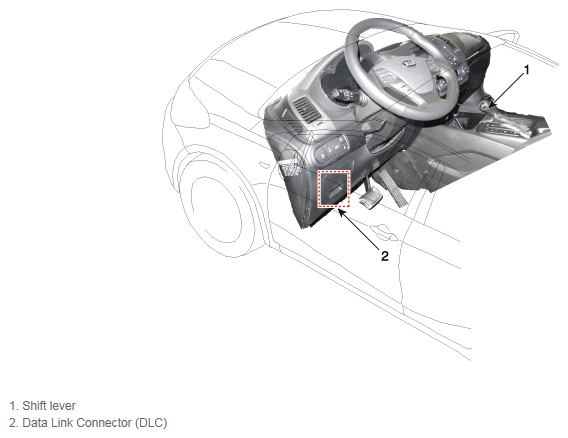

Fig 2: Locate Shift Lever And Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
