Home >> Kia >> 2016 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System - 1.6L >> Automatic Transaxle >> Components And Components Location >> Components

Components And Components Location: Components

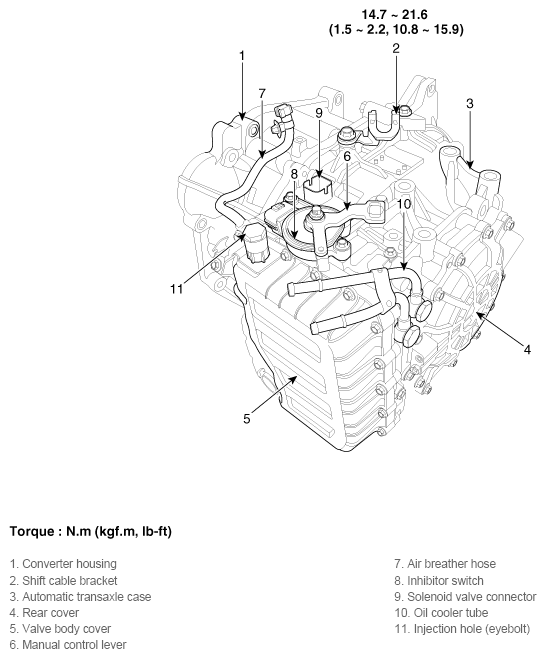

Fig 1: Automatic Transaxle Components Location

G11795136

Courtesy of KIA MOTORS AMERICA, INC.
