Signal Waveform

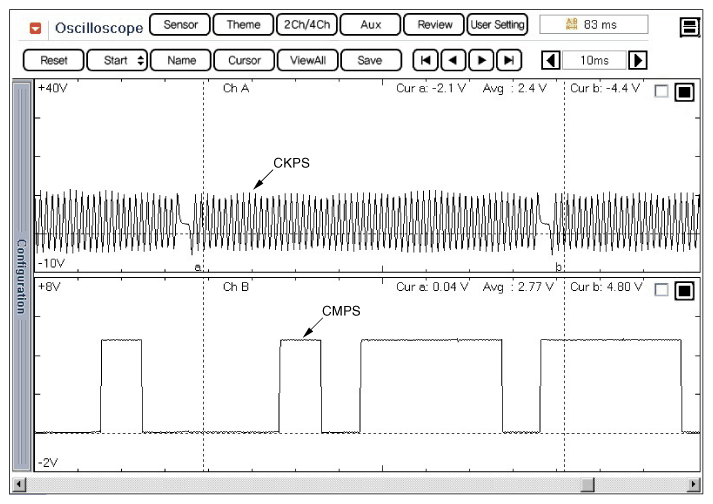

Fig 1: Display - Crankshaft Position Sensor Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
