Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

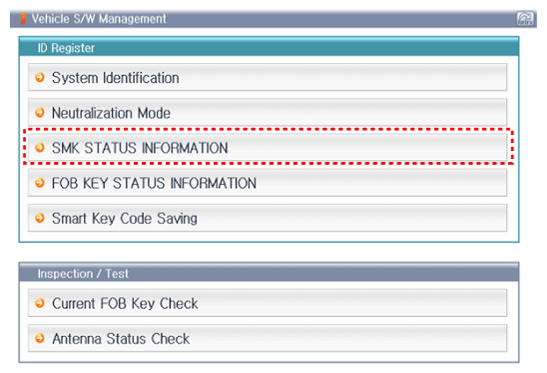

    Fig 1: Display - SMK Status Information Screen (1 Of 2)
    G11863200Courtesy of KIA MOTORS AMERICA, INC.

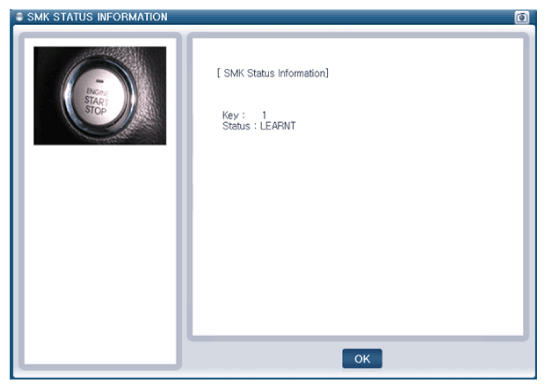

    Fig 2: Display - SMK Status Information Screen (2 Of 2)
    G11863201Courtesy of KIA MOTORS AMERICA, INC.
