Tail Gate Open Switch

Check for continuity between the tail gate open switch terminals.

Fig 1: Checking Continuity Between Tail Gate Open Switch Terminals
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not within the specification, inspect the switch.

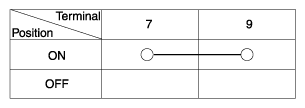

Fig 2: Tail Gate Open Switch Continuity Reference Chart

Courtesy of KIA MOTORS AMERICA, INC.
