Repair Procedures: Inspection: Notes

  1. Disconnect the Ignition Switch connector (B) and Key Warning Switch connector (A) from under the Steering Column.
    Fig 1: Removing Ignition Switch Connector
    G11858681Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Removing Key Warning Switch Connector From Steering Column
    G11858682Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

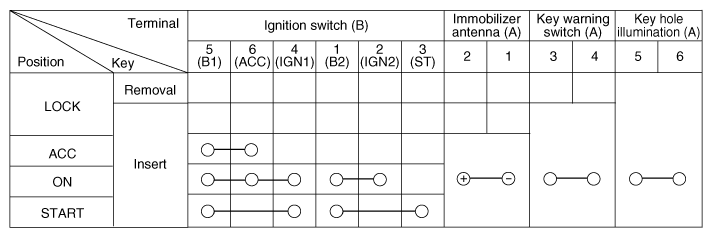

Fig 3: Checking Continuity Between Key Warning Switch Terminals
G11858683Courtesy of KIA MOTORS AMERICA, INC.
