Starting System: Troubleshooting

NOTE:
  • The Battery must be in good condition and fully charged for this troubleshooting.

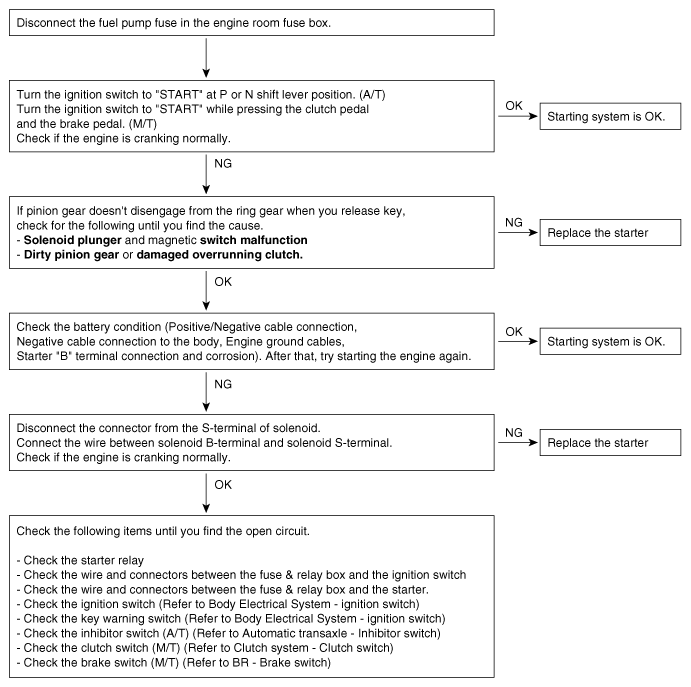

Fig 1: Starting System Troubleshooting Flow Chart
G11856511Courtesy of KIA MOTORS AMERICA, INC.
