Components and Components Location: Components

Fig 1: Location Timing System Components With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

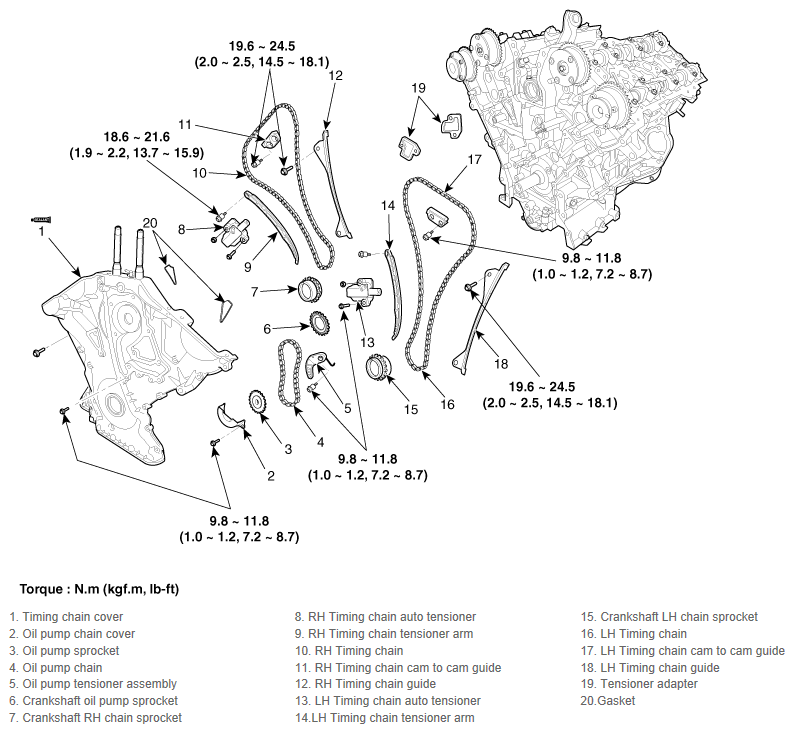

Fig 2: Location Timing System Components With Torque Specifications (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
