Components and Components Location: Components

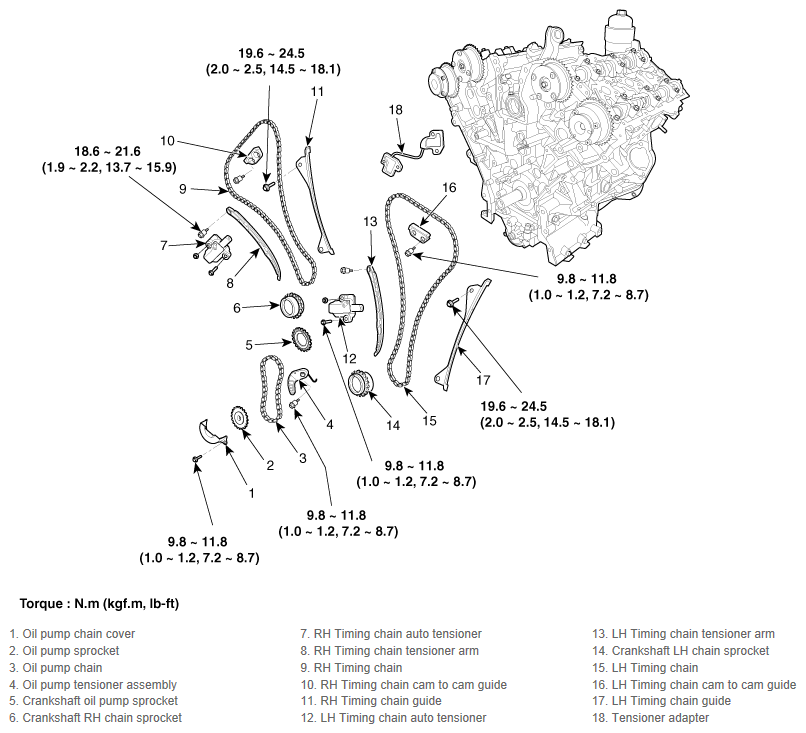

Fig 1: Location Timing Chain Components With Torque Specifications

G11856350

Courtesy of KIA MOTORS AMERICA, INC.
