Wave Form

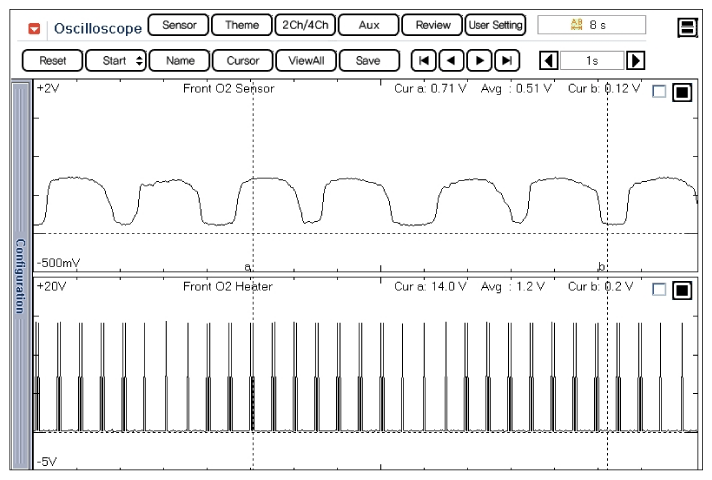

Fig 1: Front O2 Heater Signal Wave Form

G11856674

Courtesy of KIA MOTORS AMERICA, INC.

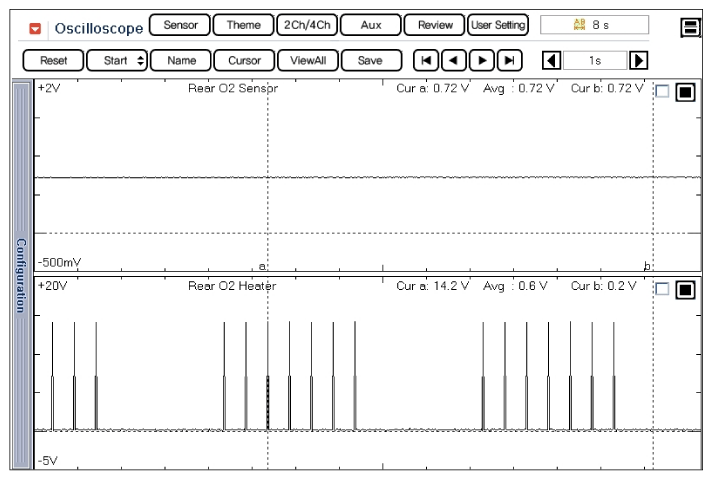

Fig 2: Rear O2 Heater Signal Wave Form

G11856675

Courtesy of KIA MOTORS AMERICA, INC.
