Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, and then turn the power on GDS.

Fig 1: Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

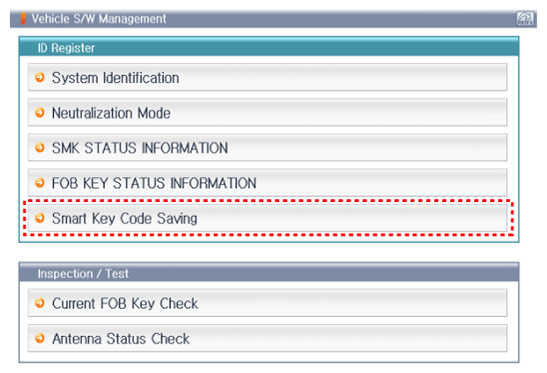

Select the vehicle model and then perform Smart key code saving below. "Smart key code saving".

Fig 2: Scantool Display - Vehicle S/W Management (Smart Key Code Saving)
Courtesy of KIA MOTORS AMERICA, INC.

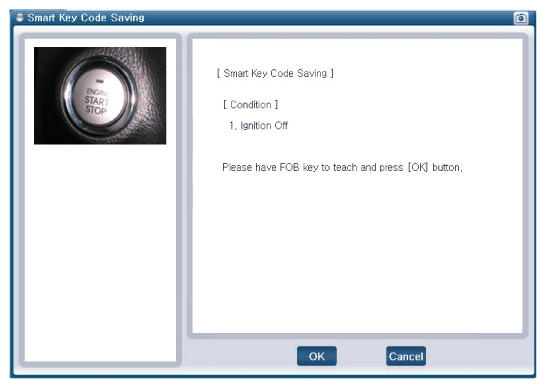

After selecting "Smart Key Code Saving" menu, push "Enter" key, then the screen will be shown as illustrated below.

Fig 3: Scantool Display - Smart Key Code Saving (Push Enter Key)
Courtesy of KIA MOTORS AMERICA, INC.

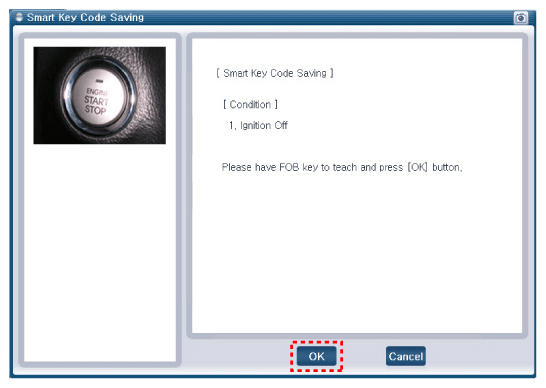

After saving the smart key code, press "OK" button.

Fig 4: Scantool Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

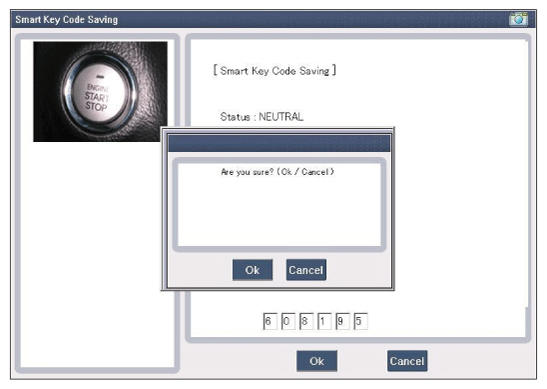

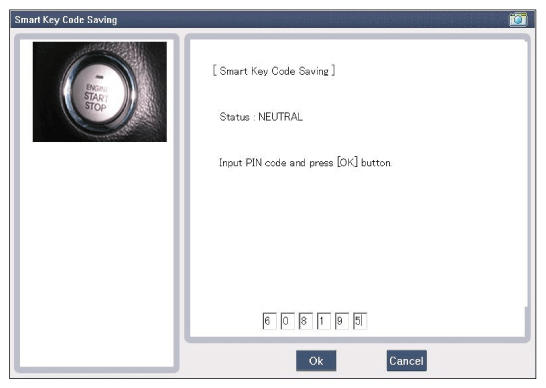

Enter the "Pin code" for the first key teaching.

Fig 5: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

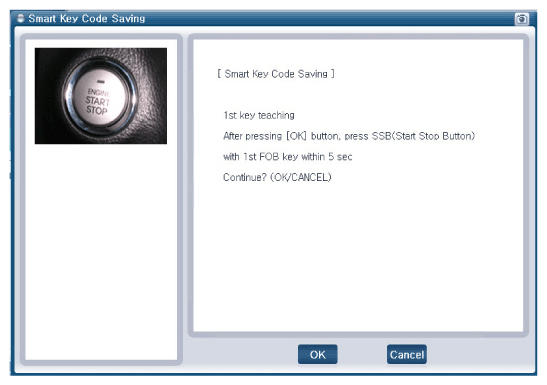

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Scantool Display - Smart Key Code Saving (1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

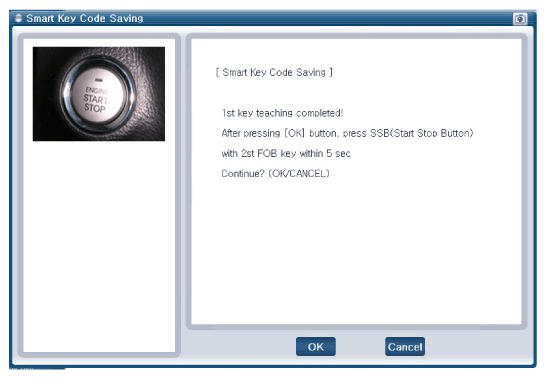

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

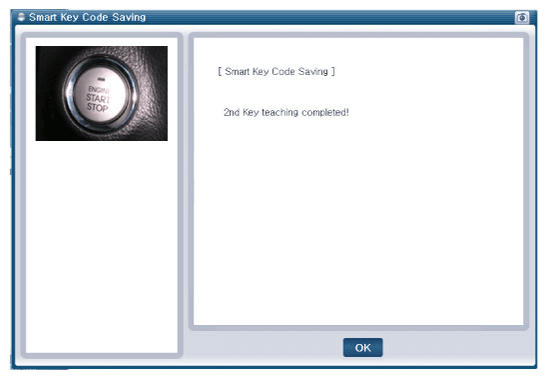

Confirm the message "Second key teaching completed".

Fig 10: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

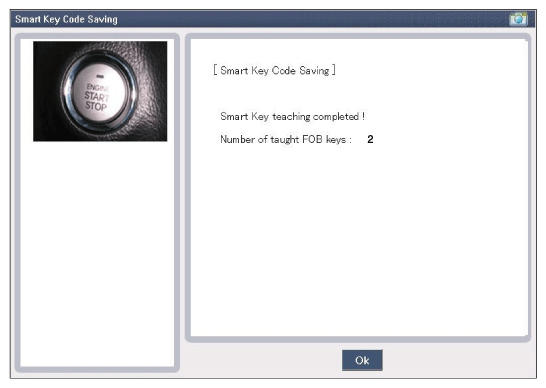

Then the screen will be shown as illustrated below when smart key saving process is completed.

Fig 11: Scantool Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
