Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

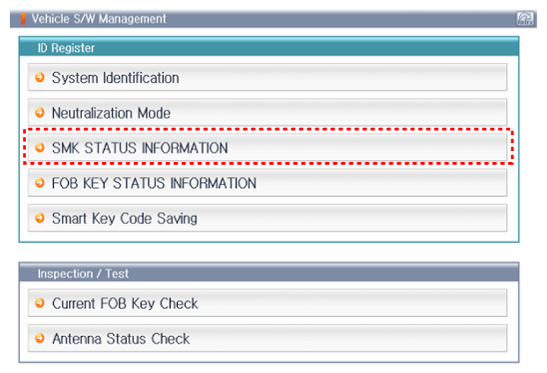

    Fig 1: Scantool Display - Vehicle S/W Management
    G11867190Courtesy of KIA MOTORS AMERICA, INC.

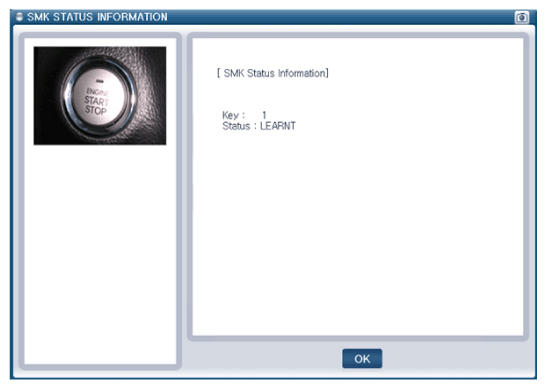

    Fig 2: Scantool Display - SMK Status Information
    G11867191Courtesy of KIA MOTORS AMERICA, INC.
