Home >> Kia >> 2016 >> Sorento L >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System - 2.4L >> Components And Components Location >> Components

Components And Components Location: Components

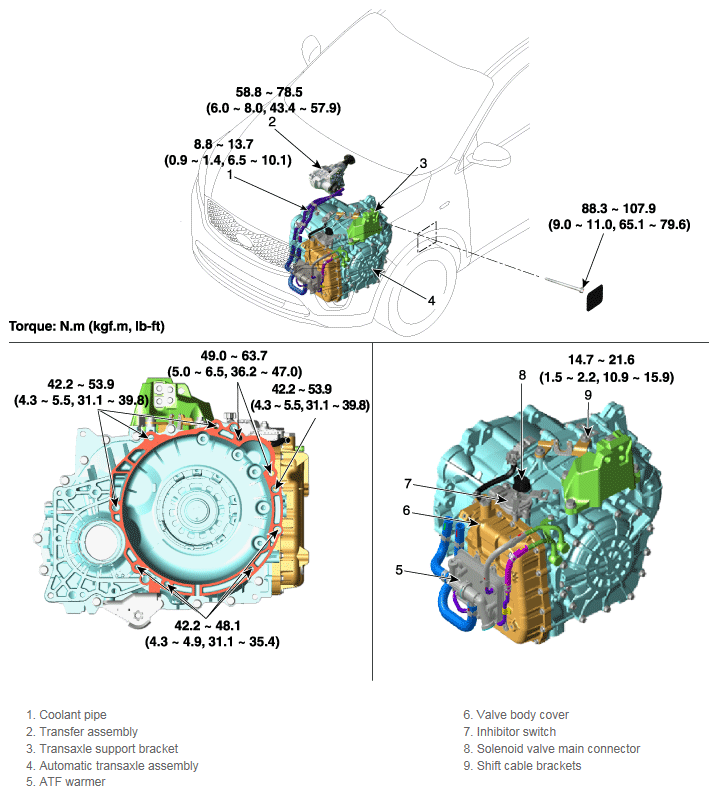

Fig 1: Automatic Transaxle System Components

G11865955

Courtesy of KIA MOTORS AMERICA, INC.
