Assist Power Window Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "FRONT DOOR TRIM .")

  3. Disconnect the connector (A) from the switch.
    Fig 1: Assist Power Window Switch Connector
    G11952634Courtesy of KIA MOTORS AMERICA, INC.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

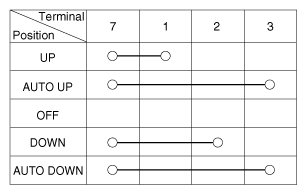

    [Safety]

    G11952635Courtesy of

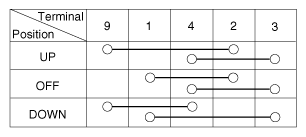

    [Manual]

    G11952636Courtesy of
