Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components And Components Location >> Components

Components And Components Location: Components

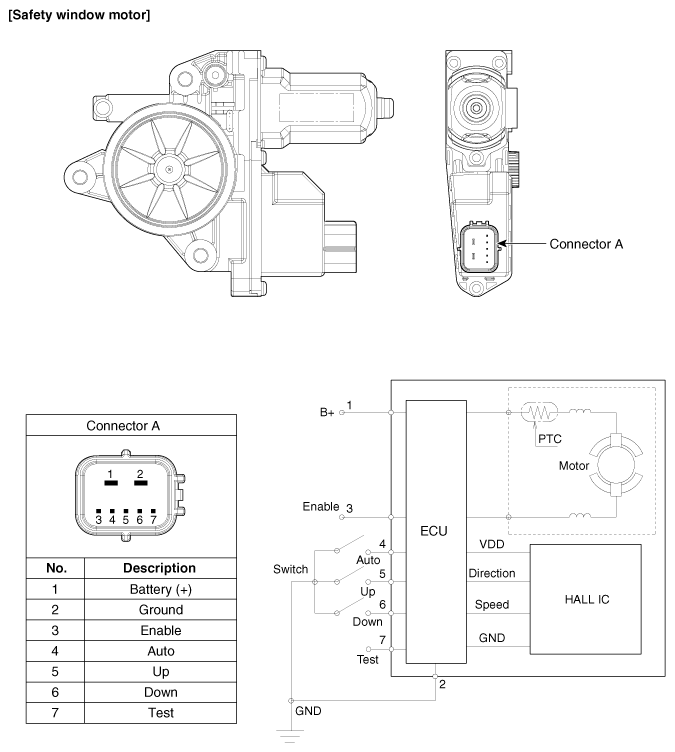

Fig 1: Safety Window Motor Connector

G11952618

Courtesy of KIA MOTORS AMERICA, INC.

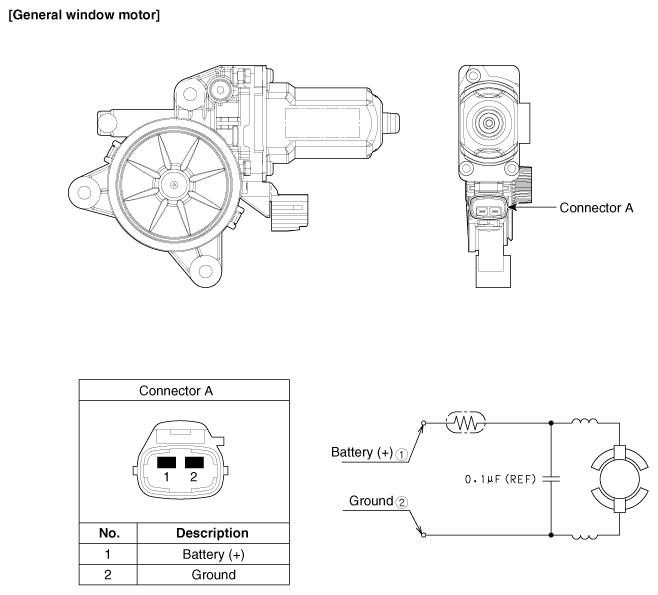

Fig 2: General Window Motor Connector

G11952619

Courtesy of KIA MOTORS AMERICA, INC.
