Components And Components Location: Components

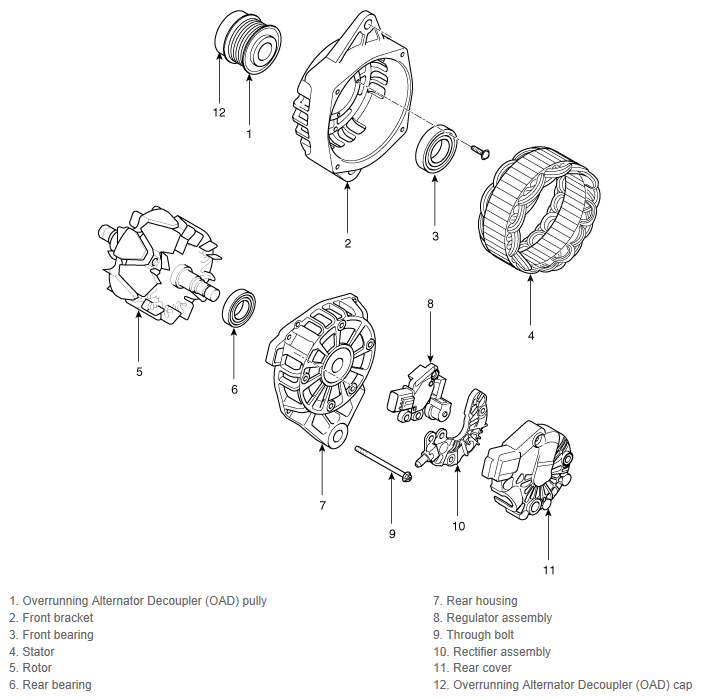

Fig 1: Alternator Exploded View
G11949905Courtesy of KIA MOTORS AMERICA, INC.
