Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFORMATION".

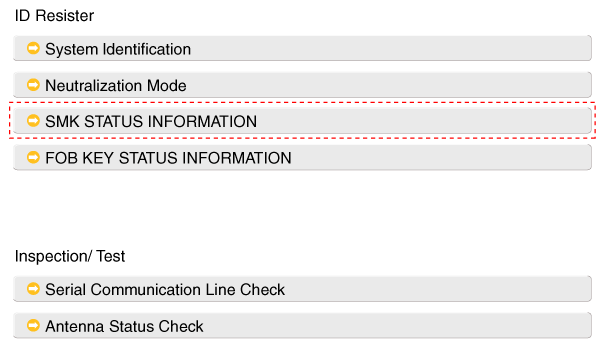

    Fig 1: Scantool Display - ID Register
    G11938138Courtesy of KIA MOTORS AMERICA, INC.

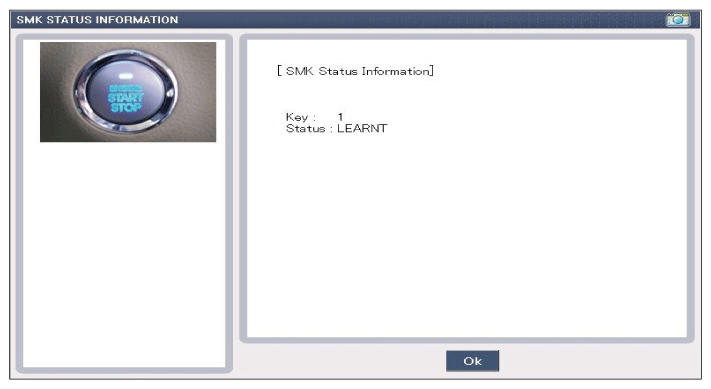

    Fig 2: Scantool Display - SMK Status Information
    G11938139Courtesy of KIA MOTORS AMERICA, INC.
