Trunk Open Switch
Trunk Open Switch
Check for continuity between the trunk switch connector.

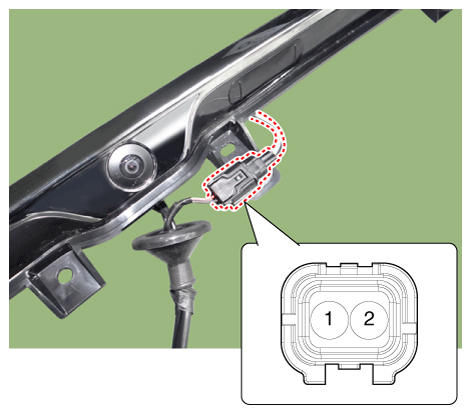

Fig 1: Trunk Open Switch With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not as specified, inspect the switch.

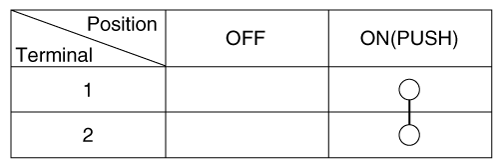

Fig 2: Trunk Open Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
