Home >> Kia >> 2017 >> Cadenza Technology >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Remove the buzzer (A) after disconnecting the connector.

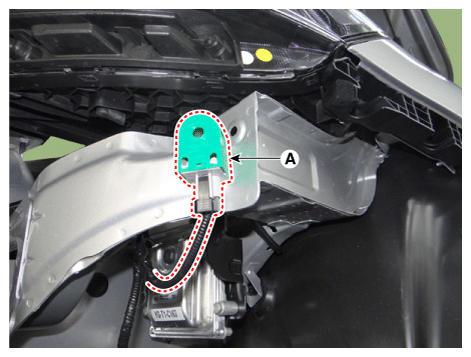

    Fig 1: Locating Buzzer
    G12298944Courtesy of KIA MOTORS AMERICA, INC.
