Home >> Kia >> 2017 >> Cadenza Technology >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Troubleshooting

Charging System: Battery: Troubleshooting

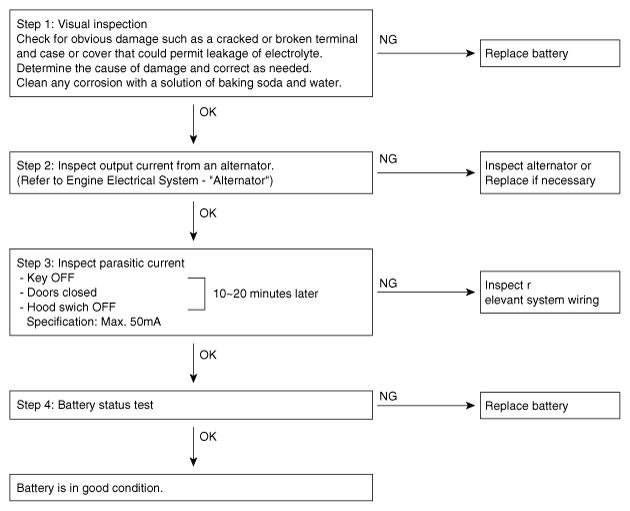

Fig 1: Battery Troubleshooting Flowchart

G12290469

Courtesy of KIA MOTORS AMERICA, INC.
