Inspection Component Location: Notes

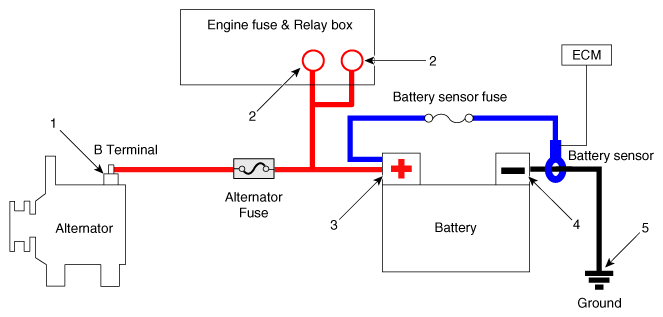

Fig 1: Inspecting Alternator B+ Terminal State
G12290432Courtesy of KIA MOTORS AMERICA, INC.
  1. Alternator B+ terminal
  2. Engine room fuse & relay box positive (+) terminal
  3. Battery negative (+) terminal
  4. Battery negative (-) terminal
  5. Chassis ground
