Repair Procedures: Removal: Notes

NOTE:
  • Be careful that no contaminant enters into spark plug holes.
  • Use the spark plug wrench (A) to prevent the damage on the spark plug.
Fig 1: Removing Spark Plug
G12290501Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

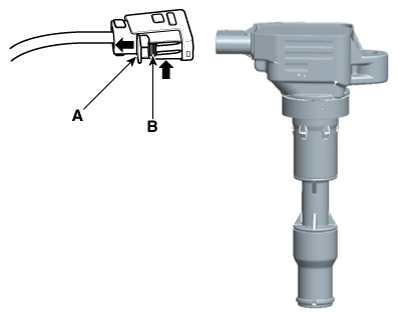

  • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
Fig 2: Pulling Lock Pin
G12290502Courtesy of KIA MOTORS AMERICA, INC.
