Rear Wheel Alignment: Camber

  1. Loosen the nut holding the lower arm cam bolt (A).
  2. Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counterclockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.

    Camber:  -1.0°±0.5°

    One scale turn:  About 0.217°

    Cam bolt (LH):  Clockwise camber (-)

    Cam bolt (RH):  Clockwise camber (+)

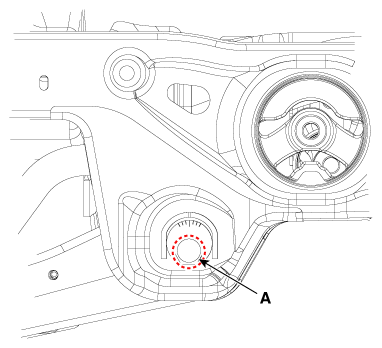

    Fig 1: Locating Lower Arm Cam Bolt
    G12294142Courtesy of KIA MOTORS AMERICA, INC.
  3. When completing the rear camber adjustment, tighten the nut to specified torque.

    Tightening torque:

    137.3 ~ 156.9N.m (14.0 ~ 16.0kgf.m, 101.3 ~ 115.7lb-ft)
