Components And Components Location: Components

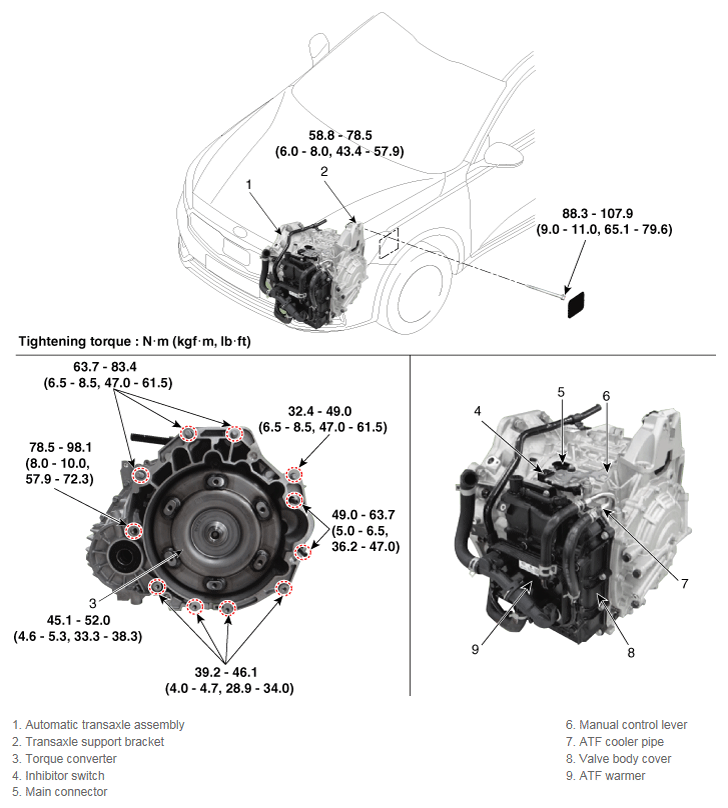

Fig 1: Automatic Transaxle System Components Location With Torque Specification

G12293768

Courtesy of KIA MOTORS AMERICA, INC.
