Roll Rod Bracket

(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

Tightening torque

Bolt (B):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Bolt (C):

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

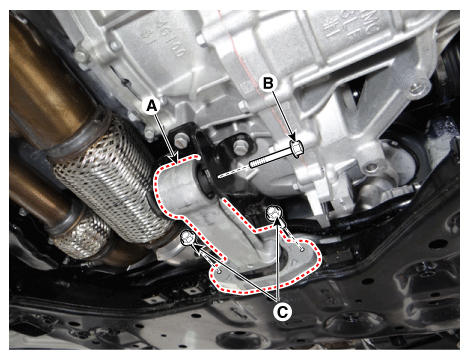

Fig 1: Locating Roll Rod Bracket With Bolts

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Replace the bolt (B) with a new one or reuse it after applying the adhesive (3M 2353) on the area of bolt in gray.

Fig 2: Bolt Adhesive Applying Area

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque  :

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

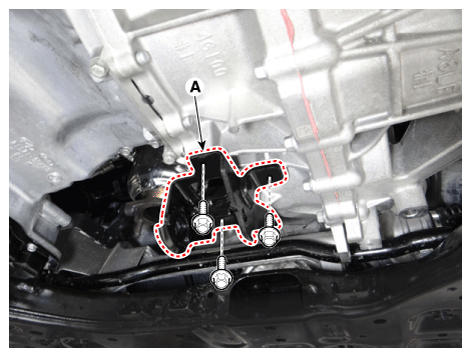

Fig 3: Locating Roll Rod Mounting Support Bracket With Bolts

Courtesy of KIA MOTORS AMERICA, INC.
