Neutralization Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

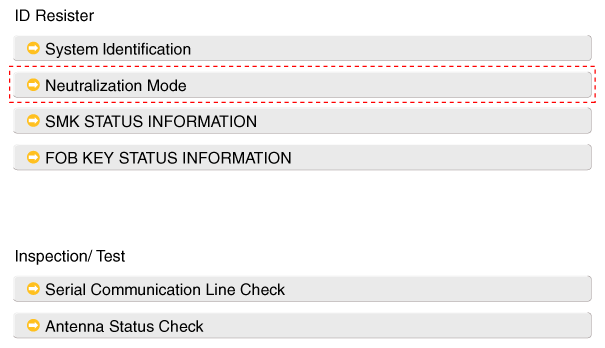

Fig 1: Scantool Display - ID Register

Courtesy of KIA MOTORS AMERICA, INC.

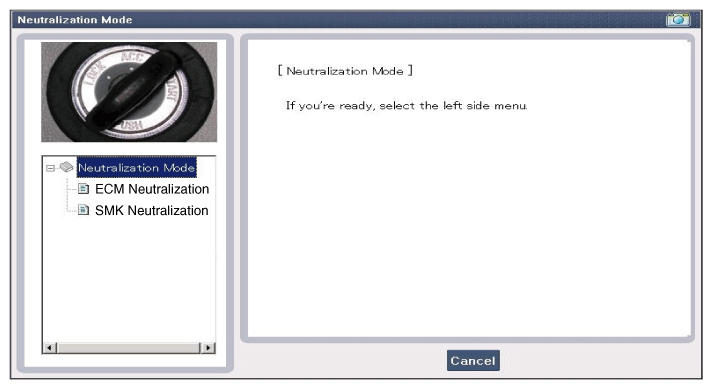

Fig 2: Scantool Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - ECM Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

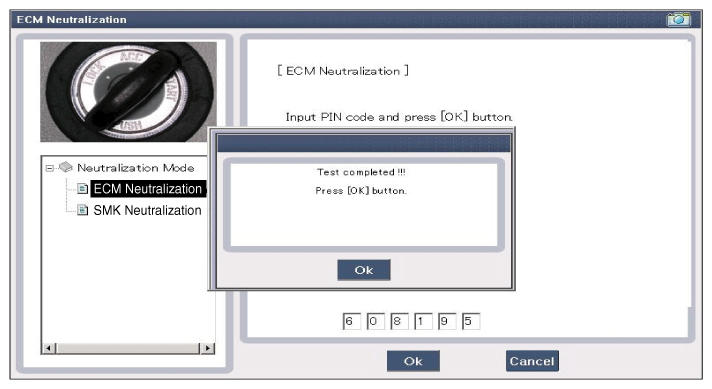

Fig 4: Scantool Display - ECM Neutralization (Test Completed)

Courtesy of KIA MOTORS AMERICA, INC.

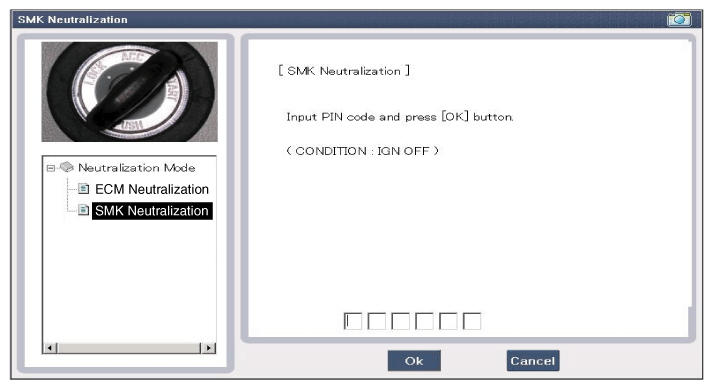

Fig 5: Scantool Display - SMK Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

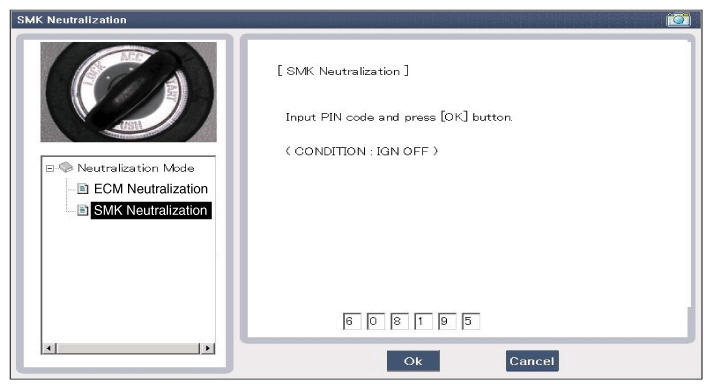

Fig 6: Scantool Display - SMK Neutralization (Input Pin Code)

Courtesy of KIA MOTORS AMERICA, INC.

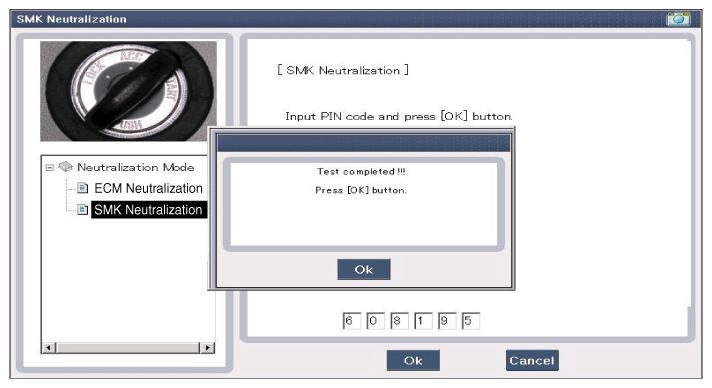

Fig 7: Scantool Display - SMK Neutralization (Test Completed)

Courtesy of KIA MOTORS AMERICA, INC.
