Smart Key Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

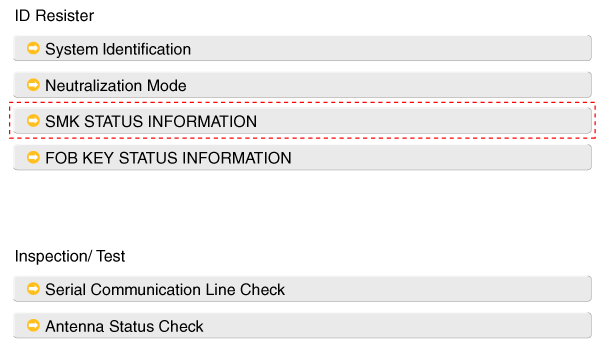

Fig 1: Scantool Display - ID Register
G12164652Courtesy of KIA MOTORS AMERICA, INC.

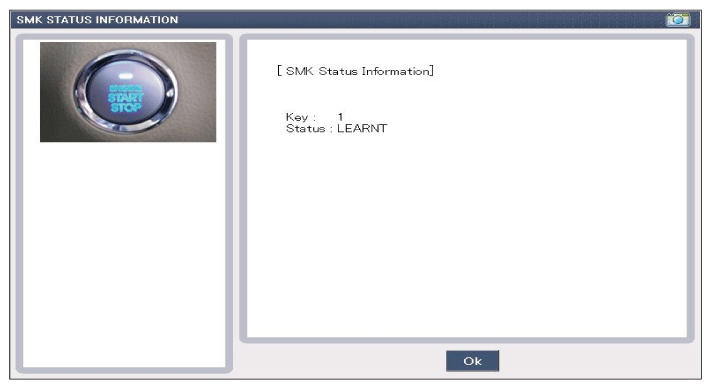

Fig 2: Scantool Display - SMK Status Information
G12164653Courtesy of KIA MOTORS AMERICA, INC.
