Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.
  3. Remove the buzzer (B) after disconnecting the connector (A).

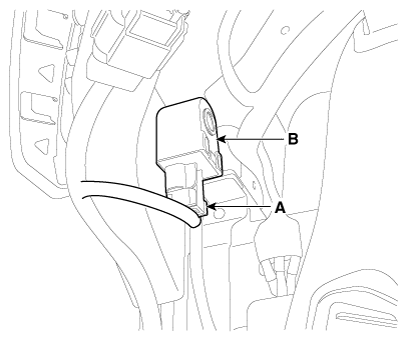

Fig 1: Buzzer And Connector
G12164630Courtesy of KIA MOTORS AMERICA, INC.
