Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connectors (A).

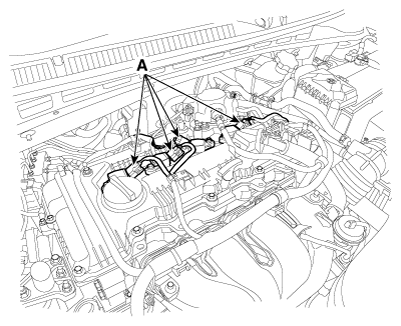

    Fig 1: Disconnecting Ignition Coil Connectors
    G12163007Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Pulling Lock Pin
    G12163008Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A).

    Ignition coil mounting bolts:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

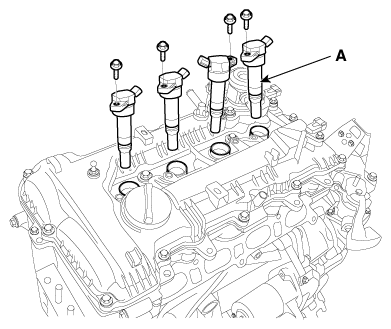

    Fig 3: Removing Ignition Coil
    G12163009Courtesy of KIA MOTORS AMERICA, INC.
