Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS/GDS when replacing with a new TCM.

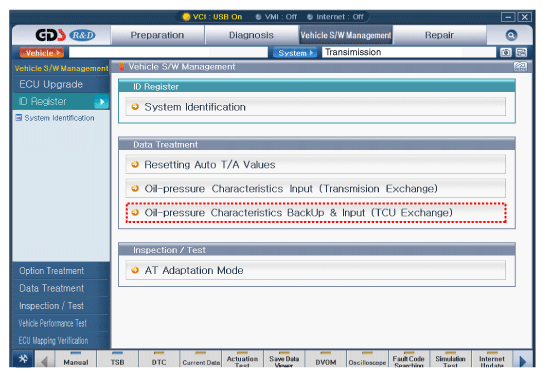

    Fig 1: Screen Display - Oil Pressure Characteristics Input
    G12163242Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ECM-related procedures.

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE ")
