Components Location

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

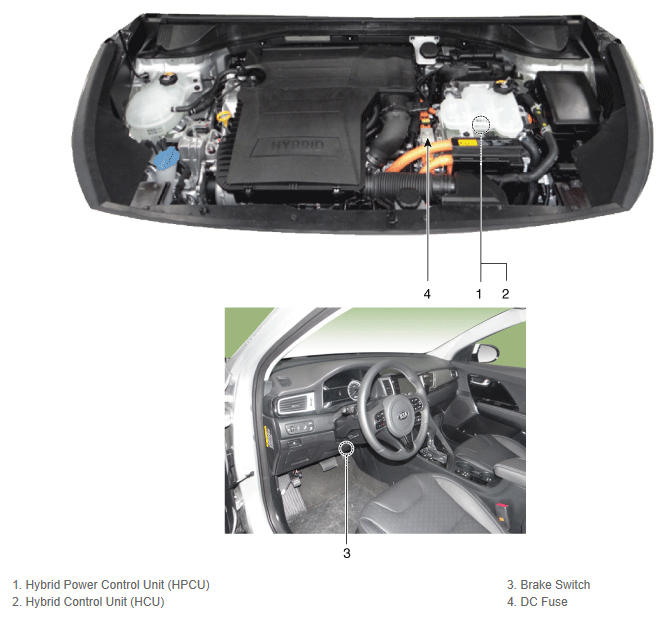

Fig 1: Locating Hybrid Control System Components

Courtesy of KIA MOTORS AMERICA, INC.

Information

HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).

Information

For the location of the other Control Modules, Refer to the relevant COMPONENT LOCATIONS .

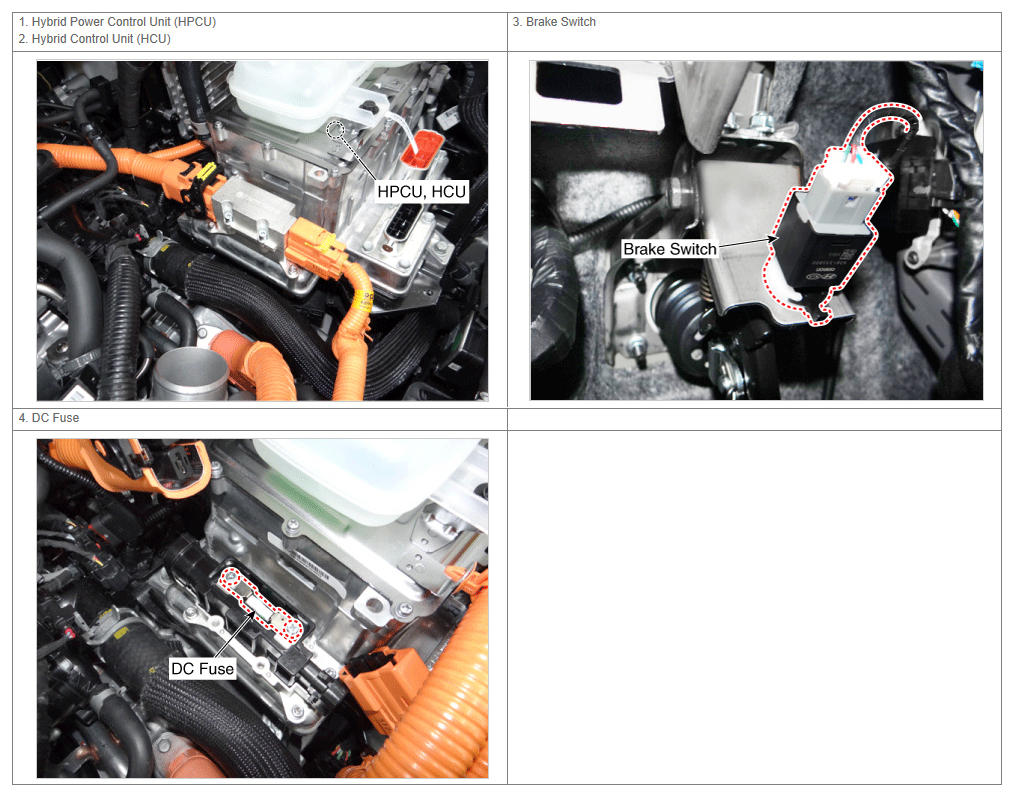

Fig 2: Locating Hybrid Control Unit, Brake Switch

Courtesy of KIA MOTORS AMERICA, INC.
