Repair Procedures: Removal

Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
After loosening each Mounting Bolt of the Low-Pitch Horn (A) and High-Pitch Horn (B), detach the Connector (C) and remove the Horn.

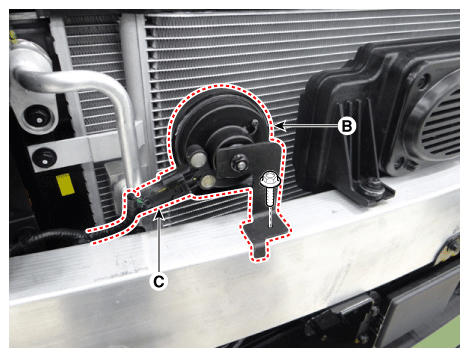

Fig 1: Loosening Mounting Bolt Of Low-Pitch Horn And High-Pitch Horn (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

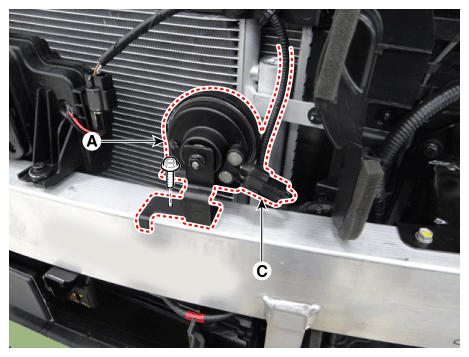

Fig 2: Loosening Mounting Bolt Of Low-Pitch Horn And High-Pitch Horn (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
