Home >> Kia >> 2017 >> Niro EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Purge Control Solenoid Valve (PCSV) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  5. Remove the purge control solenoid valve.

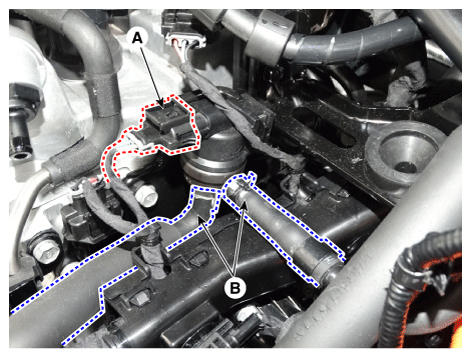

Fig 1: Disconnecting Purge Control Solenoid Valve Connector
G12335864Courtesy of KIA MOTORS AMERICA, INC.
