[2nd Method]

NOTE: The 2nd method should be performed only if the 1st method fails (the misfire-related codes recur).
  1. Start the engine and keep the engine running at idle for 2 minutes.
  2. Drive the vehicle for over 20 minutes, keeping the engine speed above 3500 RPM.
    NOTE: If equipped with manual transaxle, shift the gear properly for keeping the engine speed above 3500 RPM.

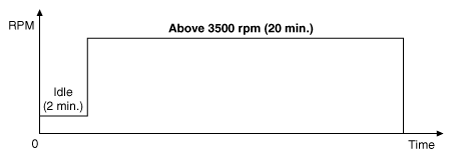

    Fig 1: Engine Coolant Temperature Timing Pattern (2nd Method)
    G12328974Courtesy of KIA MOTORS AMERICA, INC.
