Liftgate Open Switch
Liftgate Open Switch
Check for continuity between the liftgate open switch terminals.

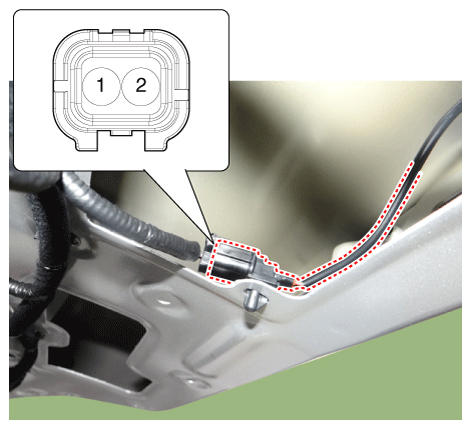

Fig 1: Checking Continuity Between Liftgate Open Switch Terminals
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not specified, inspect the switch

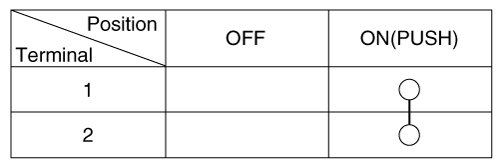

Fig 2: Liftgate Open Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
