Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System (PHEV) >> Smart Key Diagnostic >> Repair Procedures >> Inspection >> Neutralization Status Check

Neutralization Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After ignition "ON", select the "Neutralization mode".

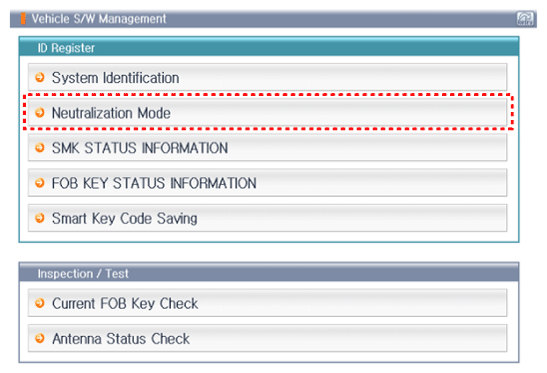

G12351918Courtesy of KIA MOTORS AMERICA, INC.

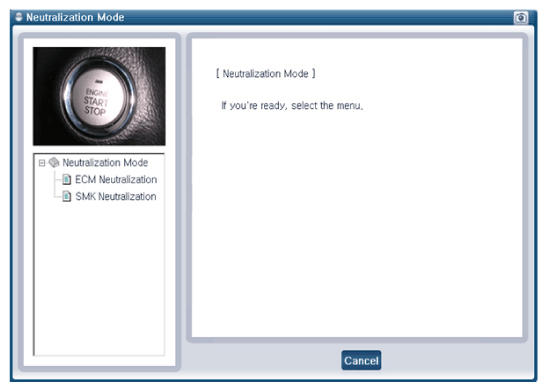

G12351919Courtesy of KIA MOTORS AMERICA, INC.

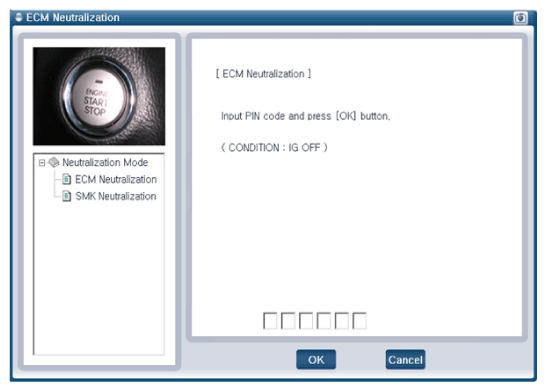

G12351920Courtesy of KIA MOTORS AMERICA, INC.

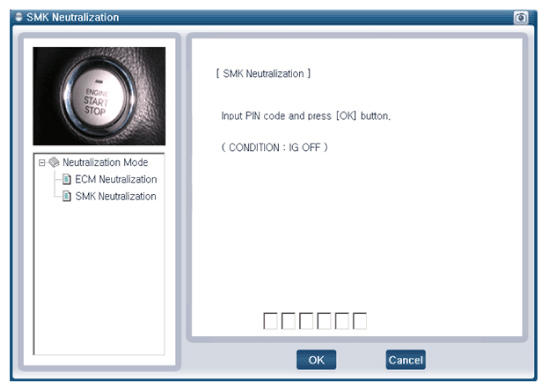

G12351921Courtesy of KIA MOTORS AMERICA, INC.
