Trunk Open Switch

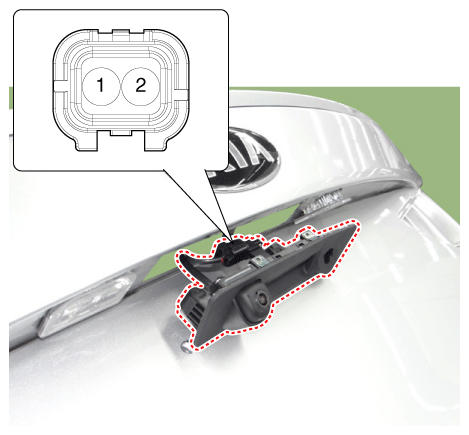

  1. Check for continuity between the trunk open switch terminals.
    G12351905Courtesy of KIA MOTORS AMERICA, INC.

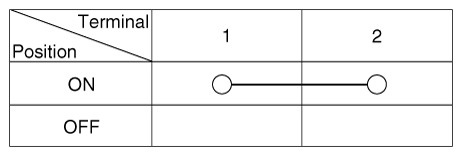

  2. If continuity is not as specified, inspect the switch.
G12351906Courtesy of KIA MOTORS AMERICA, INC.
