Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System (PHEV) >> Components And Components Location >> Components

Components And Components Location: Components

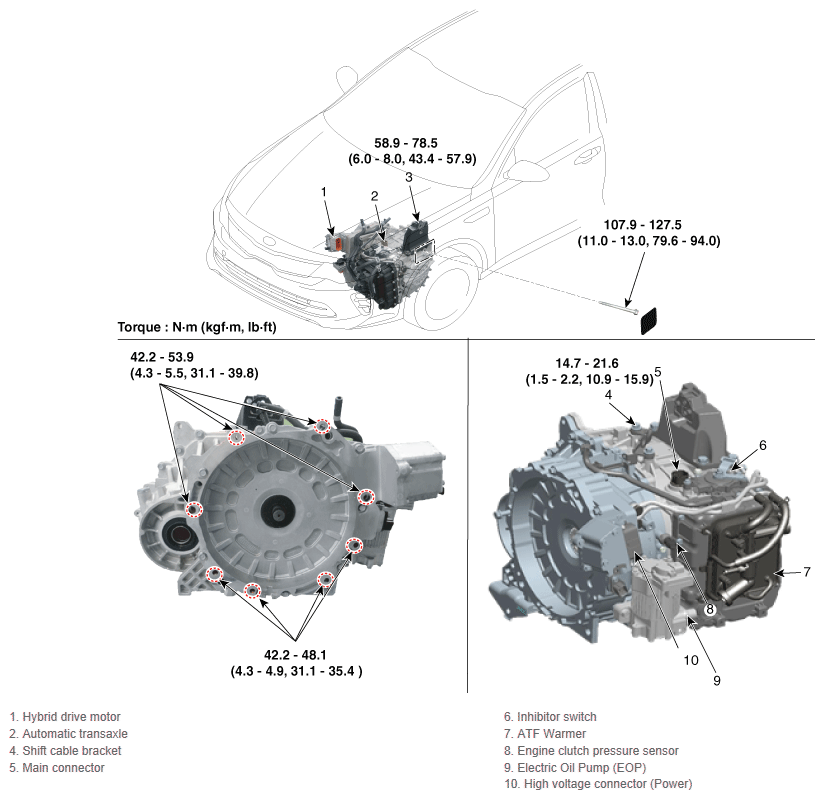

Fig 1: Automatic Transaxle Components With Torque Specification

G12347720

Courtesy of KIA MOTORS AMERICA, INC.
