Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System (PHEV) >> Valve Body >> Components And Components Location >> Components

Components And Components Location: Components

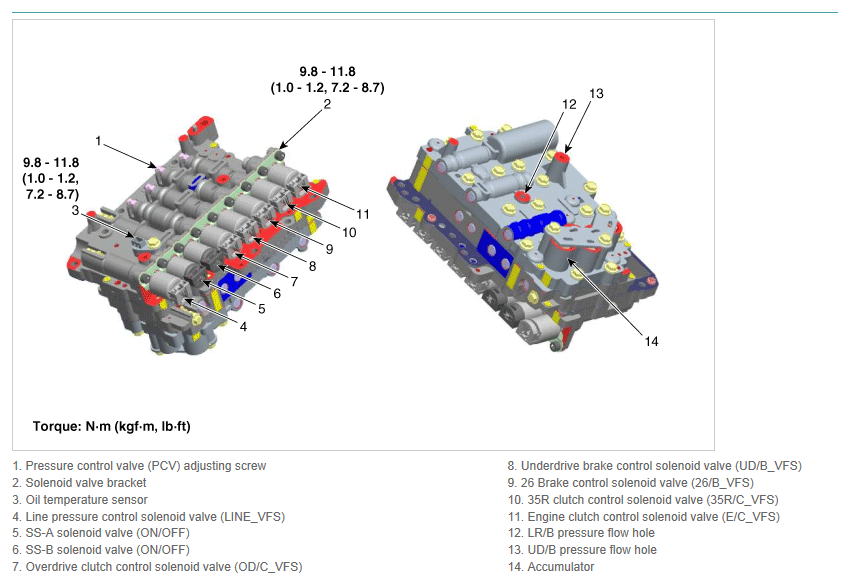

Fig 1: Valve Body Components With Torque Specification

G12347798

Courtesy of KIA MOTORS AMERICA, INC.
