Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key switch connector (A) from under the steering column.

Fig 1: Disconnecting Ignition Switch Connector And Key Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

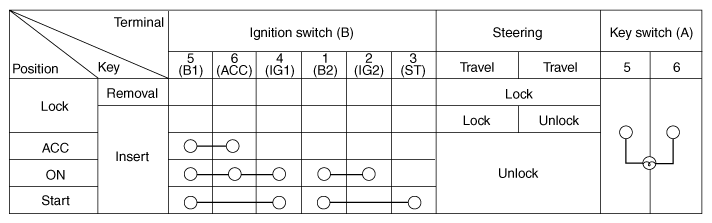

Fig 2: Ignition Switch Connector Terminal Chart

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Checking Continuity Between Ignition Switch Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.
