Engine Starting System: Troubleshooting

NOTE:

• The Battery must be in good condition and fully charged for this Troubleshooting.

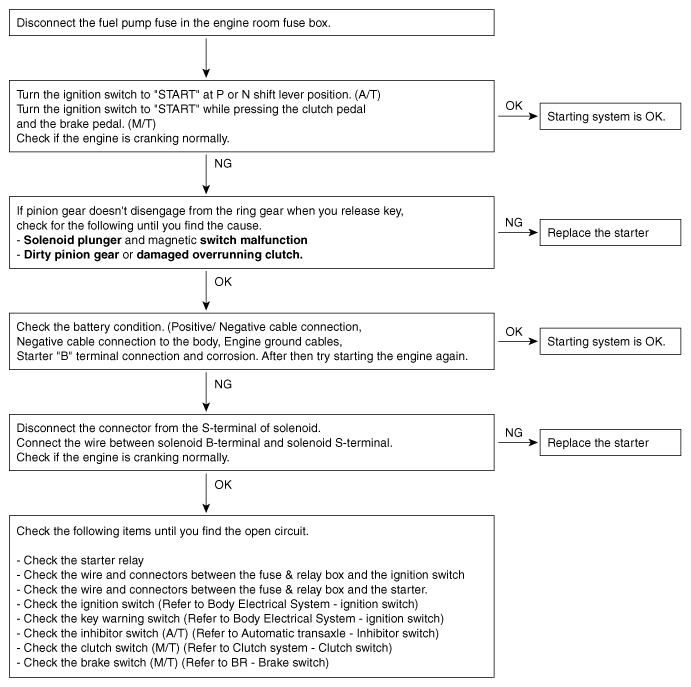

Fig 1: Starting System Troubleshooting Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
