Components And Components Location: Components

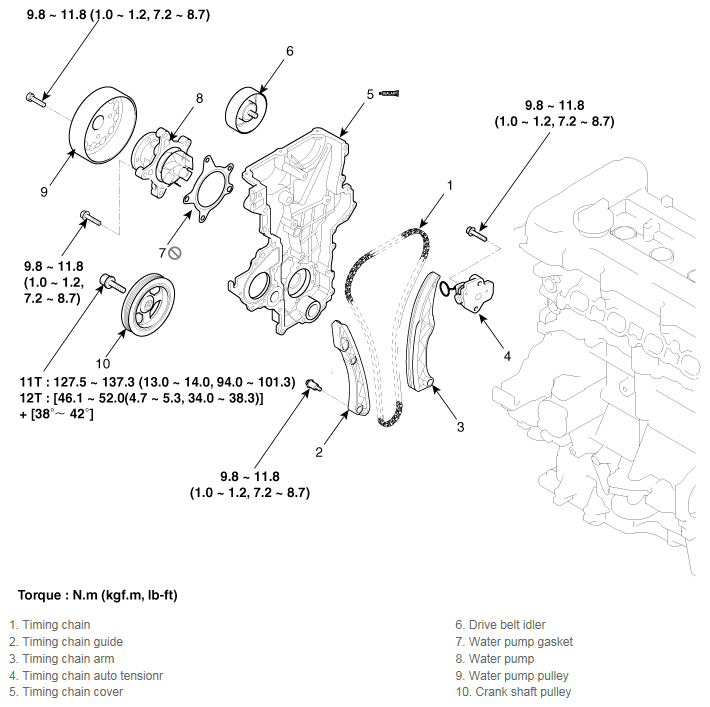

Fig 1: Locating Timing Chain Components With Torque Specifications

G11844589

Courtesy of KIA MOTORS AMERICA, INC.
