Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

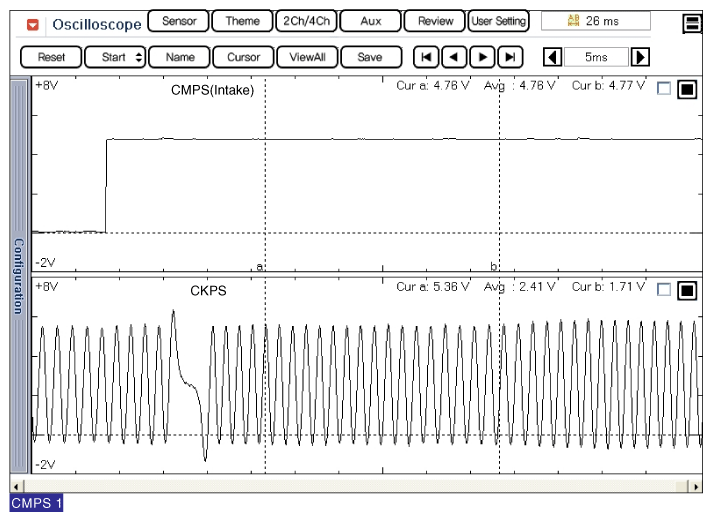

Fig 1: Screen Display - Waveform (CMPS 1)
G11845147Courtesy of KIA MOTORS AMERICA, INC.

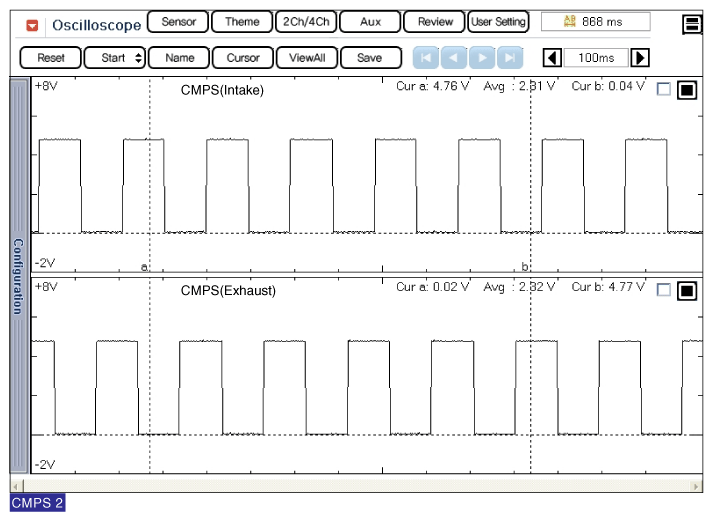

Fig 2: Screen Display - Waveform (CMPS 2)
G11845148Courtesy of KIA MOTORS AMERICA, INC.
