Circuit Diagram

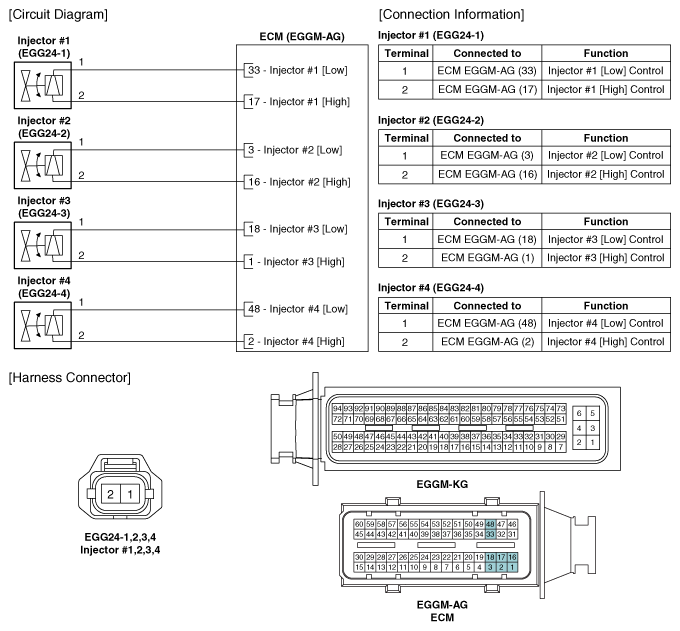

(M/T)

Fig 1: Injector Circuit (M/T)

G11845186

Courtesy of KIA MOTORS AMERICA, INC.

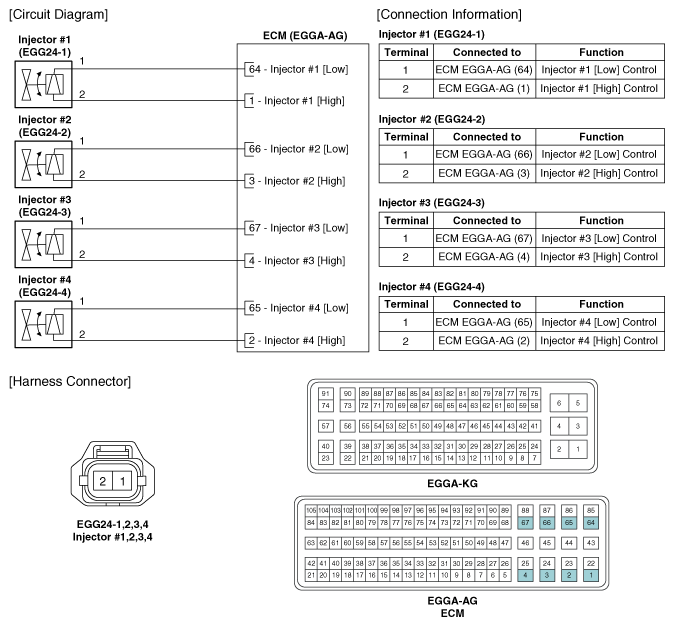

(A/T)

Fig 2: Injector Circuit (A/T)

G11845187

Courtesy of KIA MOTORS AMERICA, INC.
