Home >> Kia >> 2017 >> Rio SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Heated Oxygen Sensor (HO2S) >> Troubleshooting >> Signal Waveform

Signal Waveform

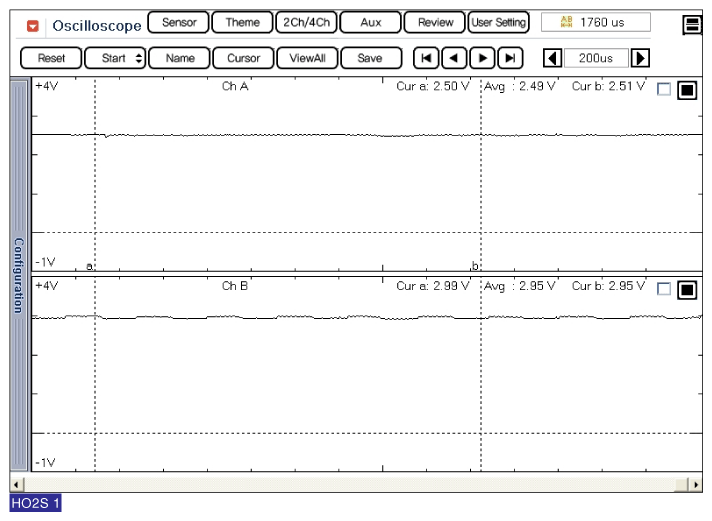

Fig 1: Screen Display - Waveform (HO2S 1)
G11845158Courtesy of KIA MOTORS AMERICA, INC.

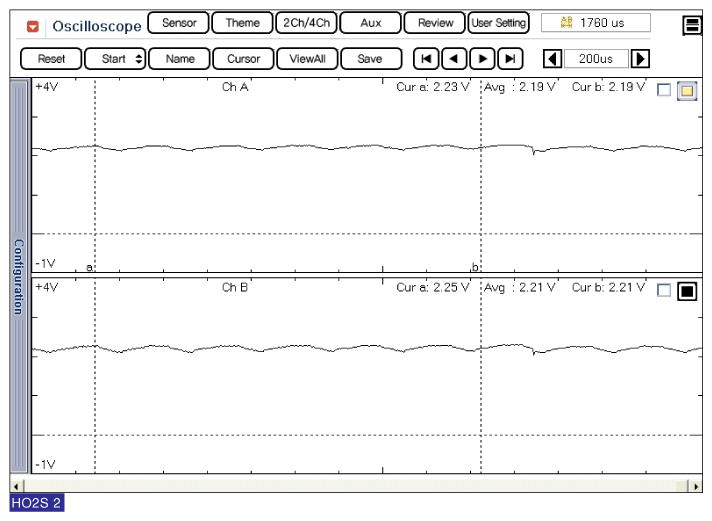

Fig 2: Screen Display - Waveform (HO2S 2)
G11845159Courtesy of KIA MOTORS AMERICA, INC.

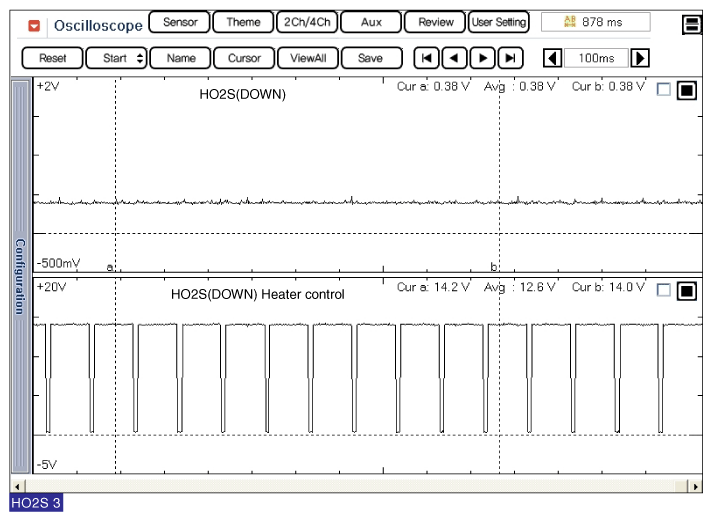

Fig 3: Screen Display - Waveform (HO2S 3)
G11845160Courtesy of KIA MOTORS AMERICA, INC.
