Components Location

[Vehicle Components]

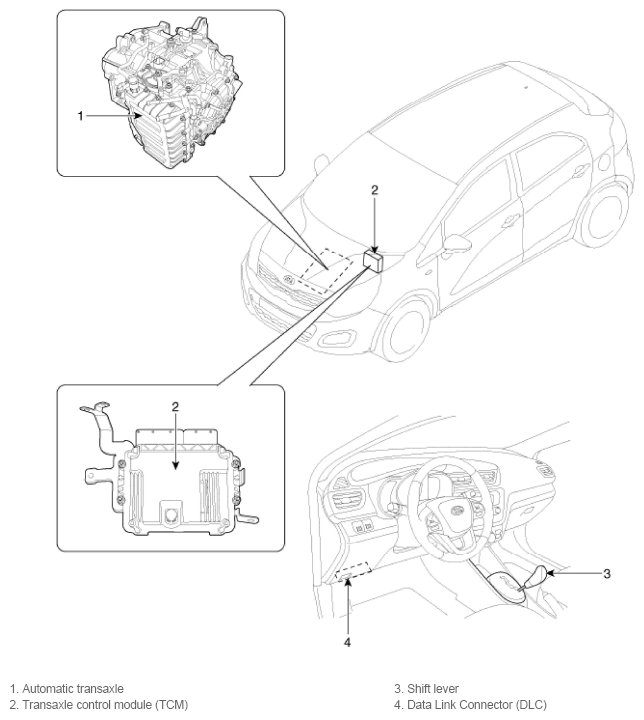

Fig 1: Locating Vehicle Components

Courtesy of KIA MOTORS AMERICA, INC.

[Transaxle Components]

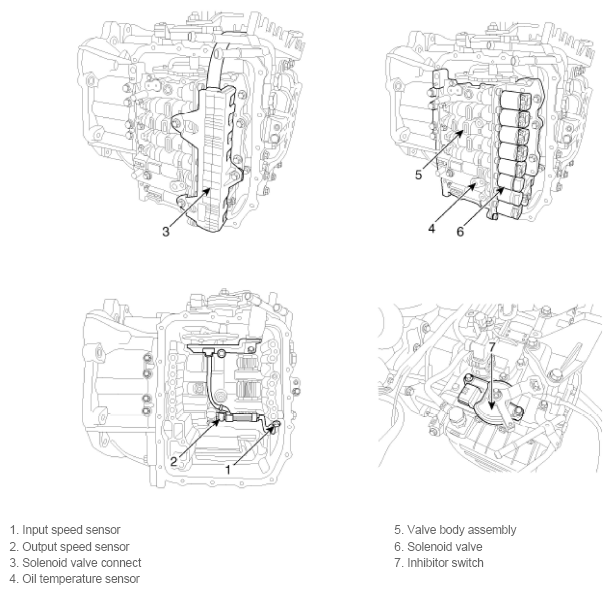

Fig 2: Locating Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.
