Tail Gate Open Switch

  1. Check for continuity between the tail gate open switch terminals.
    Fig 1: Tail Gate Open Switch With Connector End View
    G12272516Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not within the specification, inspect the switch.

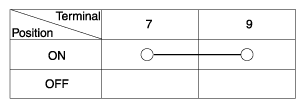

    Fig 2: Tail Gate Open Switch Terminal Description Chart
    G12272517Courtesy of KIA MOTORS AMERICA, INC.
