Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, and then turn the power on GDS.

Fig 1: Locating DLC Cable Of GDS To Data Link Connector (DLC - 16 Pins)
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then perform "SMART KEY CODE SAVING ".

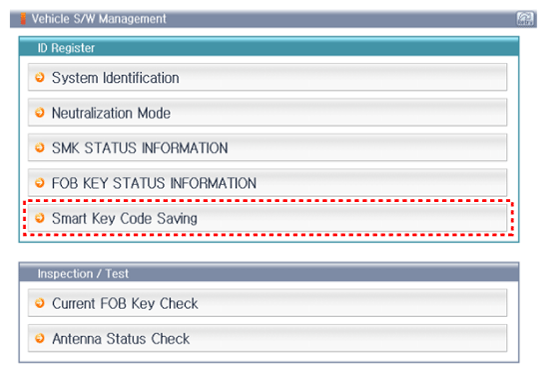

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart Key Code Saving" menu, push "Enter" key, then the screen will be shown as below

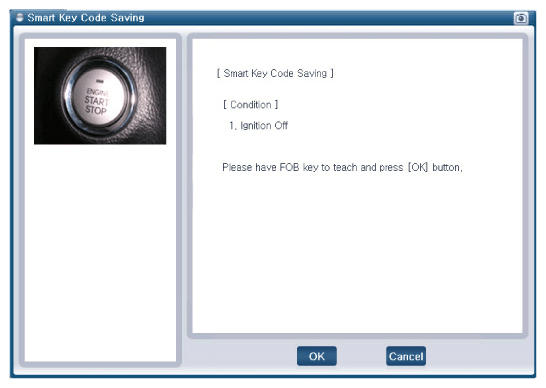

Fig 3: Screen Display - Smart Key Code Saving (Push Enter Key)
Courtesy of KIA MOTORS AMERICA, INC.
After saving the smart key code, press "OK" button.

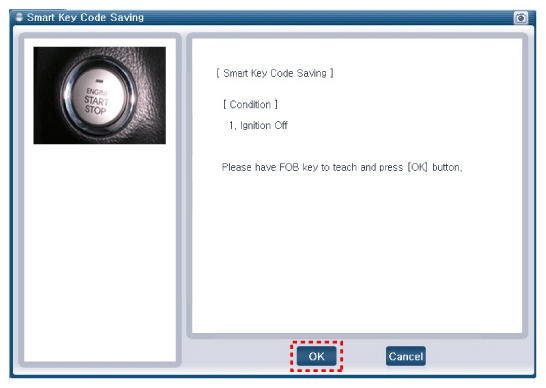

Fig 4: Screen Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.
Enter the "Pin code" for the first key teaching.

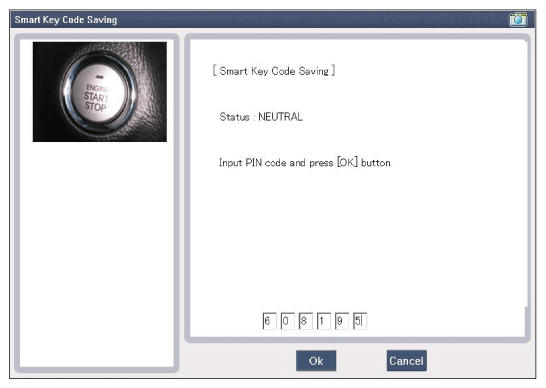

Fig 5: Screen Display - Enter Pin Code
Courtesy of KIA MOTORS AMERICA, INC.

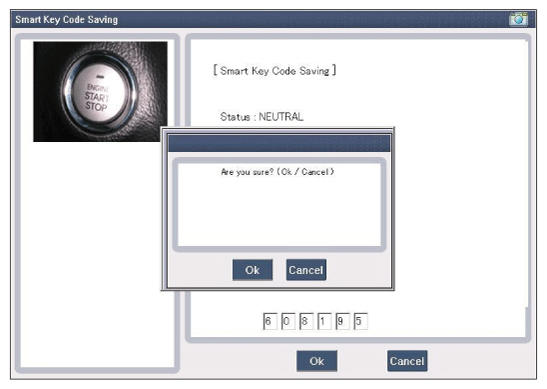

Fig 6: Screen Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

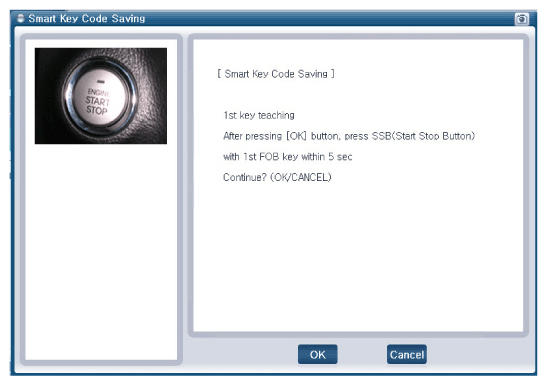

Fig 7: Screen Display - Press SSB With Smart Key
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

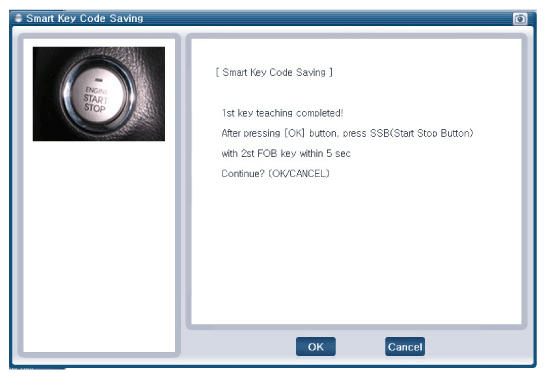

Fig 8: Screen Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Screen Display - Press SSB With Smart Key (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

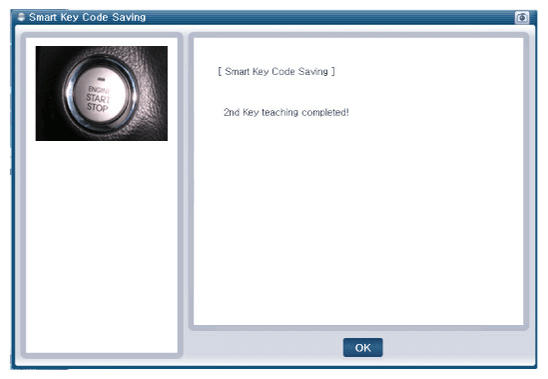

Fig 10: Screen Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when smart key saving process is completed.

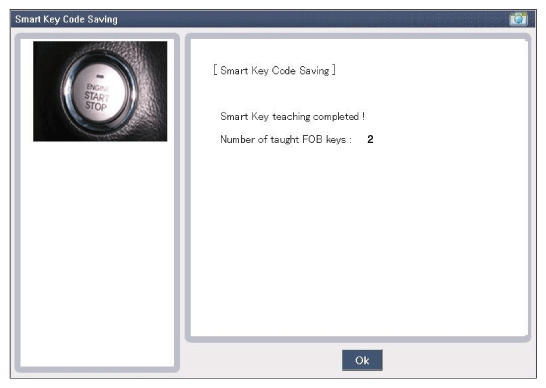

Fig 11: Screen Display - Smart Key Code Saving (Teaching Process Complete)
Courtesy of KIA MOTORS AMERICA, INC.
