Home >> Kia >> 2017 >> Sedona EX >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> Start/Stop Button >> Components And Components Location >> Component

Components And Components Location: Component

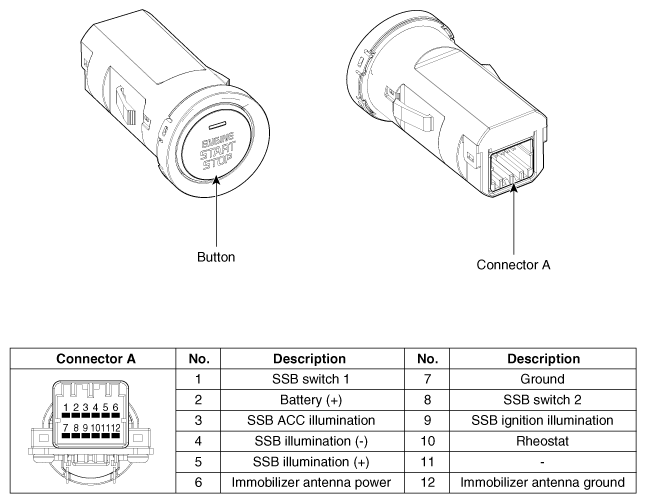

Fig 1: Start/Stop Button Components Location With Connector End View

G12271830

Courtesy of KIA MOTORS AMERICA, INC.
