Rear Power Window Switch

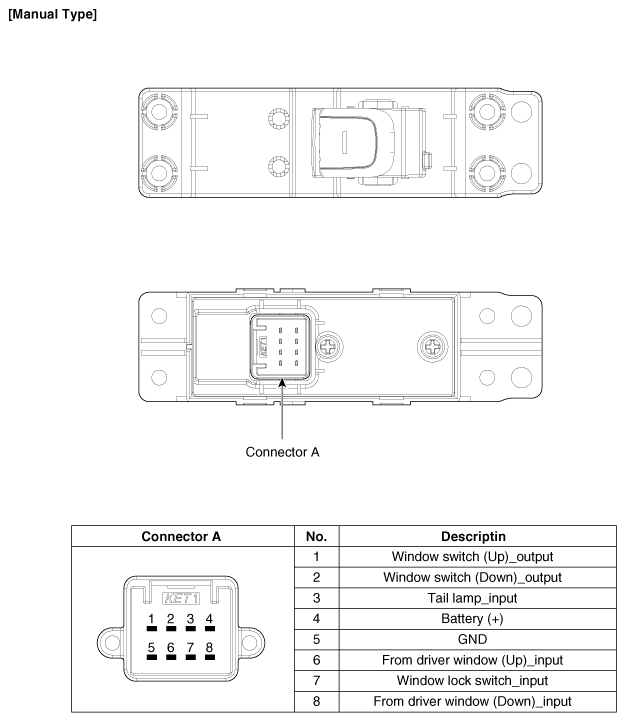

Fig 1: Rear Power Window Switch Connector Terminal Description Chart - Manual Type
G12272368Courtesy of KIA MOTORS AMERICA, INC.

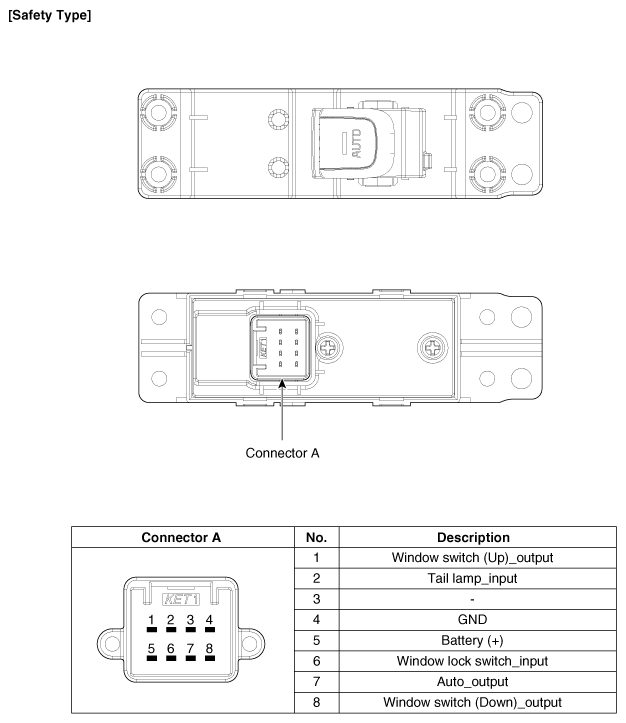

Fig 2: Rear Power Window Switch Connector Terminal Description Chart - Safety Type
G12272369Courtesy of KIA MOTORS AMERICA, INC.
